Fuel Line Install

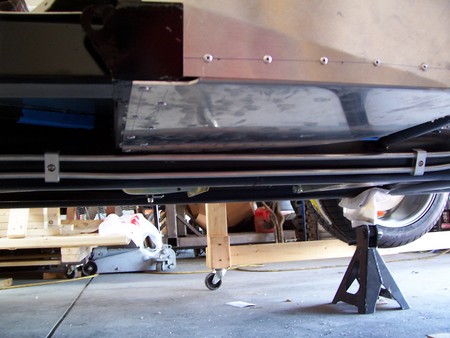

CLAMP-3838F and CLAMP-3838R
In this installation, the chassis is using the FFR Fuel Cell with a
carb application. As such dual 3/8" clamps (PN: CLAMP-3838R and CLAMP-3838F)
were used for the fuel lines running down the passenger side of the car.
Install was on a FFR Mark III Roadster.

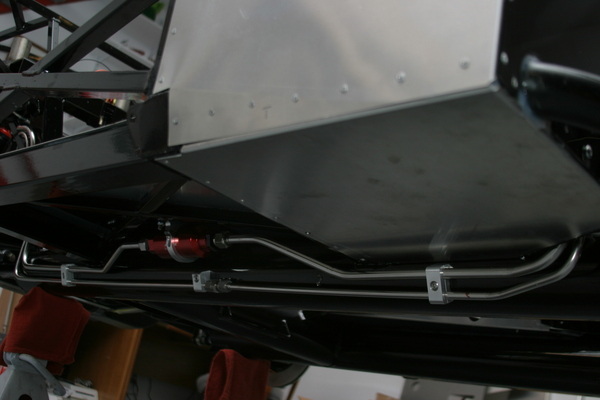

CLAMP-3812R AND CLAMP-38SF
In this install, stainless steel fuel lines were run tank to engine for
feed and return. The fuel pump and fuel filter were mounted on a main
backbone under the car with the lines split, thus the need for a couple
of different clamp styles. Install was on a FFR Mark III Roadster.
CLAMP-AN6 BRAIDED
Single line clamps for AN-6 braided line. This installation
was a pump dead end installation so only a single line was needed from
the pump to the block. Install was on a FFR Mark III Roadster.

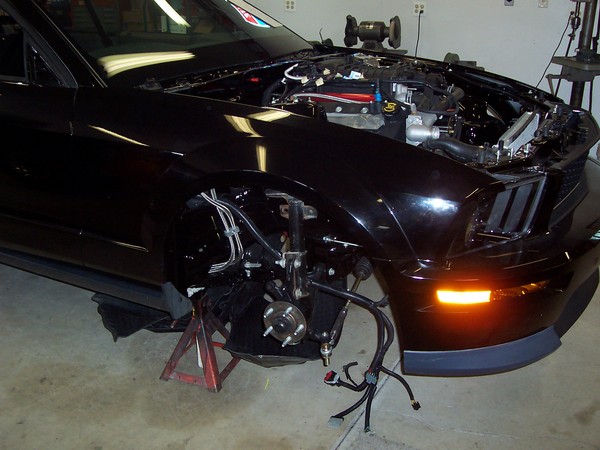

CUSTOM -10AN DUAL LINE CLAMPS
Dual line clamps for AN-10 braided hose. This installation is a fuel injected/
supercharged application in a 2008 Mustang Convertible drag car.

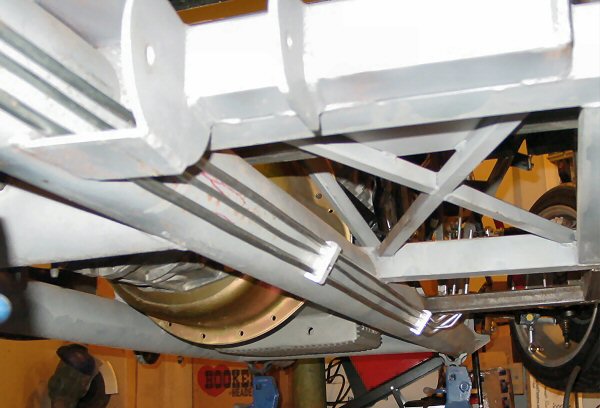

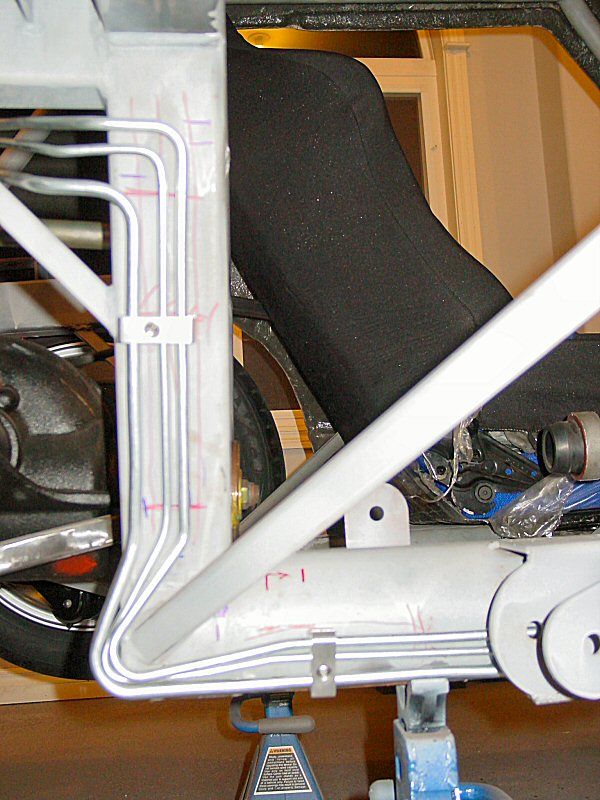

CUSTOM TRIPLE LINE CLAMPS
Custom cut triple line clamps for a 3/8" feed line, 5/16" return line,
and a 5/16" vapor line (fuel injected application). Install on a Type 65
Coupe Replica.

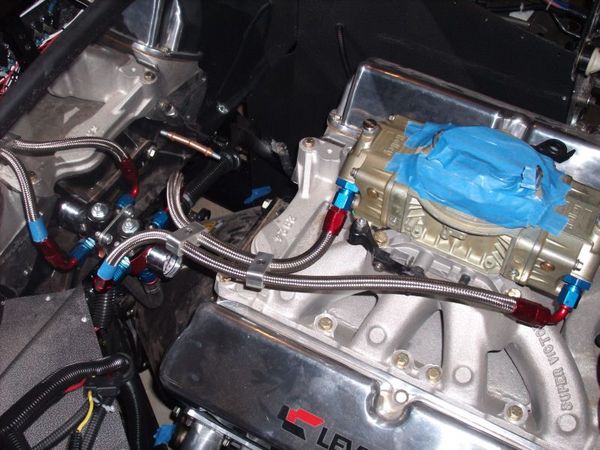

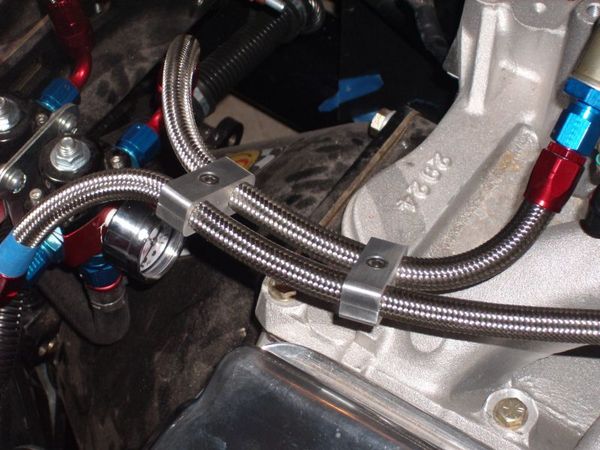

CUSTOM -6AN HOSE SEPARATORS
Custom cut dual line hose separators which match the stock braided line clamps.
